    15m 35m High Mast Monopole Antenna Tower For Communication

    Ask Lasest Price
    Brand Name : GUANGXIN
    Model Number : STP-001
    Certification : ISO9001
    Price : USD498-8798 per piece
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000 sets per month
    Delivery Time : 20-30days
    • Product Details
    • Company Profile

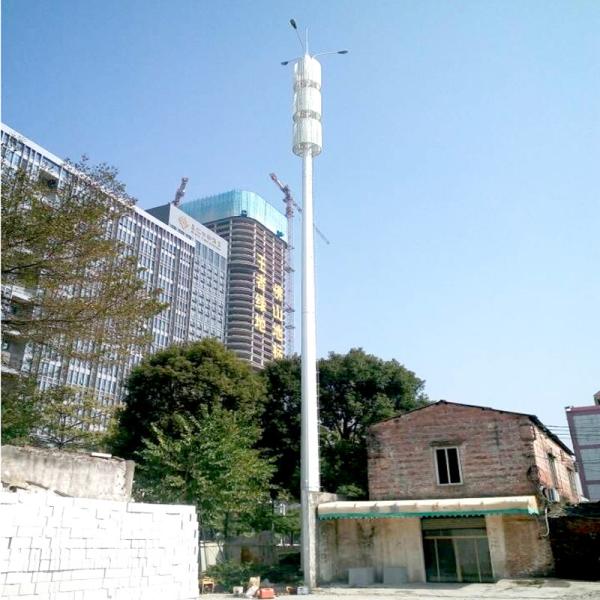

    15m 35m High Mast Monopole Antenna Tower For Communication

    15m 35m High Mast Monopole Antenna Tower For Communication


    15m-35m High Mast Steel Tower Tubular Pole For Communication, Landscape And Lighting


    Custom Design Galvanized Steel Communication Poles for Radio and 3G/4G/5G Telecom Antenna Stations

    As a professional manufacturer of steel poles and towers, we’re producing all kinds of steel poles for a vast range of applications such as communication macrocell and microcell stations, street/roadway/ highway lighting and traffic signal control and monitor, landscaping etc. In addition, we can also create new designs of steel poles, towers and gantry structures to meet your aesthetic and functional demands.


    Our main products include:

    • Steel tower: 3 legs and 4 legs lattice tower (self-supporting tower or wire guyed tower)
    • Steel pole: street light pole, high mast light tower, communication antenna pole, landscape antenna/light tower
    • Artificial tree/plant camouflaged cell tower.
    • Steel structure for traffic or signage billboard gantry and pole.

    Specifications

    DescriptionsSteel poles for mounting communication antennas, microwaves, RRUs etc.
    HS Code7308900000
    MaterialWeldable structural carbon steel
    GradeGB Q235, Q345, BS4360, ASTM A36 etc.
    Yield Strength235-355MPa
    Height5m to 55m or other specified height
    Thickness4mm to 20mm, depending on height of pole.
    Pole ShapeConical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
    Diameter or DimensionsSubject to height of pole and required mechanical properties.
    DesignSingle, dual or multiple platforms and brackets
    Surface FinishHot dip galvanization plus powder or PVDF coating (optional)
    Galvanization65-100 Microns
    Coating35-80 Microns (optional)
    ColorSilver, grey, black, white, blue, yellow etc.
    ApplicationsGSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution.

    The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.


    Applicable Examples of Steel Tower and Pole


    Communication Pole

    Street/Roadway/highway/stadium light pole

    Traffic signal light pole,Traffic CCTV monitor camera and sign pole


    Smart City Management System Light Pole


    Signage/Advertising Billboard or LED display pole or gantry


    High Mast Landscape/Lighting/Communication Steel Tower


    Artificial Tree Camouflaged Telecommunication Antenna Tower
