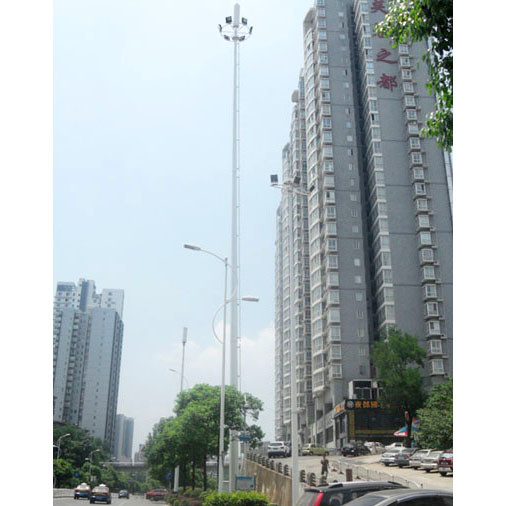

PVDF Coating Steel High Mast Light Tower 50m 355MPa Strength
30m Galvanized Steel Lifting Light Pole Or Tower For Large Field
Lighting At Squares And Stadium
Galvanized Steel Light Pole with Powder or PVDF Coating for
Landscaping and Lighting
Street Light Pole for mounting Solar Panels, LED lights, Antennas
and Landscaping Ornament
Established in 2009, Guangzhou Guangxin Communication Equipment
Co., Ltd. is a professional manufacturer of steel poles and towers,
specializing in producing all kinds of light poles for a vast range
of applications such as street lighting poles, roadway and highway
light poles, traffic signal, CCTV monitor and guideboard poles and
gantries, signage poles and gantry frames, high mast lighting poles
for public sqaures and stadiums etc. In addition, we can also
create new designs of poles to meet your aesthetic and functional
demands.
Specifications
| Descriptions | Galvanized Steel street / roadway / highway / stadium / Utility /
area Light Pole |
| HS Code | 7308900000 |
| Material | Low carbon weldable structural steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 35m or other specified height |
| Thickness | 4mm to 15mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular,
polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple straight or curved arms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Powder Coating | 35-80 Microns |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | Roadways, streets, highways, stadiums, public sqaures, airports,
railway stations, communities, parking lots, gardens etc. |
Conical roadway light pole Directly buried installation Fixed by
bolts and nuts with foundation
The steel light poles are designed with single, dual or multiple
arms and brackets for mounting lamps, solar panels, CCTV cameras or
other facilities as per requests. The designs of arms and brackets
are also customized to requirements for different connectors of
luminairs or other facilities. With custom special designs, the
light poles are not only used for lighting, monitoring or traffic
signal control but also for city landscape decorations.
25m Street Lighting Pole with automatic lifting system
Smart City and Intelligent Traffic Signal and Lighting Pole
Management System (all in 1 digital information solution)
High power LED lamp with light sensor control
Built-in loudspeaker and network system for APP online remote
control
Weather and environment management system
Traffic signal control system
CCTV camera monitor system
LED screen for information and advertising display
Intercom alarm and alert communication system
High quality customized design steel light pole for support and
mount.
Traffic signal light pole and CCTV monitor camera pole
Traffic guideboard pole and gantry
Signage/Advertising Billboard or LED display pole or gantry

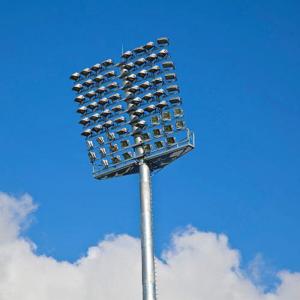

High mast stadium light pole. Landscape Tower with Lighting and/or
Communication Microcell Antenna
